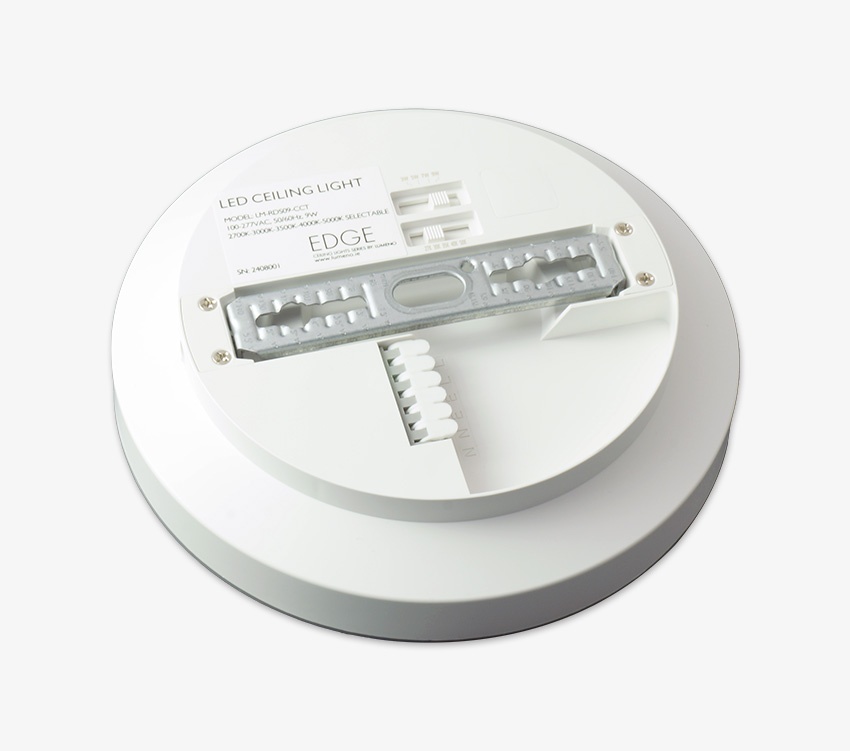

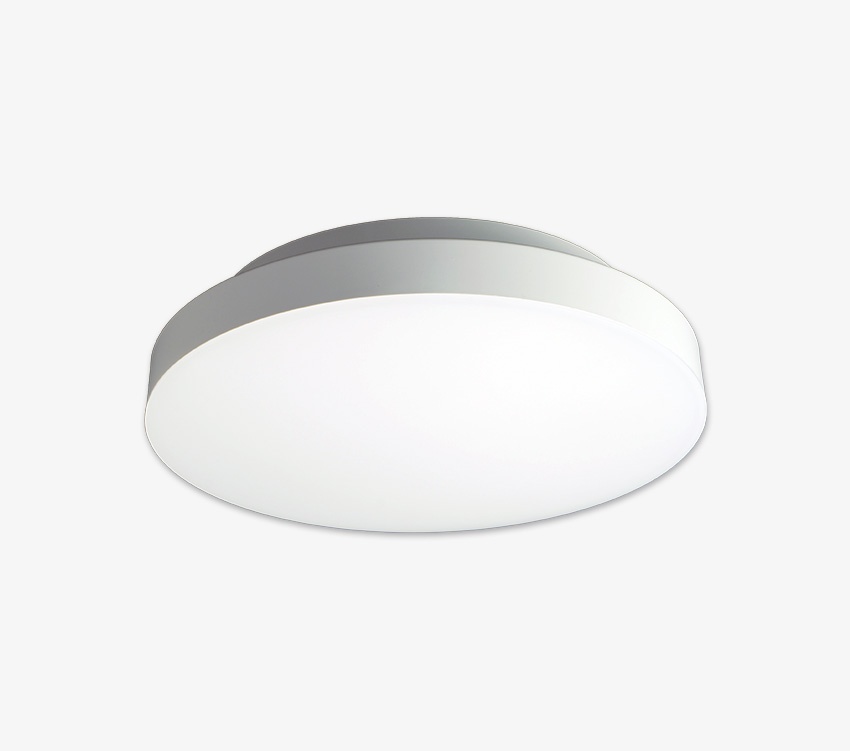

Edge'9W CCT Selectable Multi Wattage Downlight
DATASHEET
www.lumeno.ie
LM-RDS09
Edge'9W CCT Selectable Multi Wattage Downlight
E
918LM
Rimless solution, full lighting face
Wattage Adjustable: 3W-9W
5 CCT Selectable: 2700-3000-3500-4000-5000K
IP54 Standard, IP65 with installation base
Modern Design
Edge Series CCT & wattage selectable round LED Lights are a sleek, modern fixtures designed for versatile ceiling or wall installation.
Technical Specifications
General
Model
LM-RDS09
Product type
Surface Light
Compliance summary
CE Rohs
Warranty
3 Years
Accessories
*Installation base
Electrical
Dimming / control type
3W-9W Selectable
Lighting
Luminaire classification
MDLS
Light source
LED
LED type
SMD 2835
Luminous flux (lm)
918LM
Luminous efficacy (lm/W)
104
Colour rendering index (CRI)
CRi>80
Beam angle (degrees)
110°
Available luminous flux
918
Mechanical
Rated lifetime (hours)
30K Hours
IK rating
IK04
Dimensions (mm)
Ø180mm x 39mm
Weight
335g
