1CH 0/1-10V dimming decoder, 15A@12/24V, 10A@36/48V
DATASHEET
www.lumeno.ie
LM-CT-LVL-N

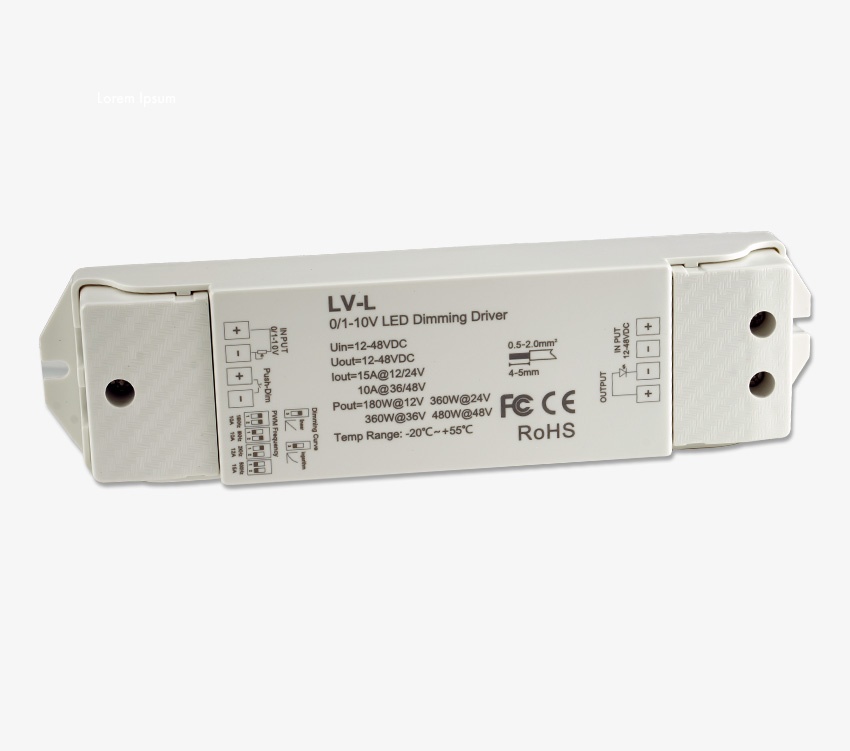

1CH 0/1-10V dimming decoder, 15A@12/24V, 10A@36/48V
No vote
5A*4CH, MAX 20A;
Input signal: 0-10V, 1-10V, Push DIM
Dimming range: 0-100%
Dimming Decoder/driver for 0/1-10V dimming system. Up-to 360W of load under standard 12/24V supply.
Technical Specification
Model
LM-CT-LVL-N
Input Voltage (Pri)
12V-48V DC
Output
V+ / V-
Output Power (P)
15A@12/24V;10A@36/48V
Ingress Protection
IP20
Dimming
Dimmable with 0/1-10V, Retractive (push)
Size
175x45x27mm
Protection
Over-heat / Over-load / Short circuit protection / recover automatically
Certification
CE,Rohs
Warranty Period
5 Year
