DATASHEET - Triac/Mosfet dimmable power supply

www.lumeno.ie
psd24v150sl
psd24v150slpsd24v150sl-2
LM-PSD24V150

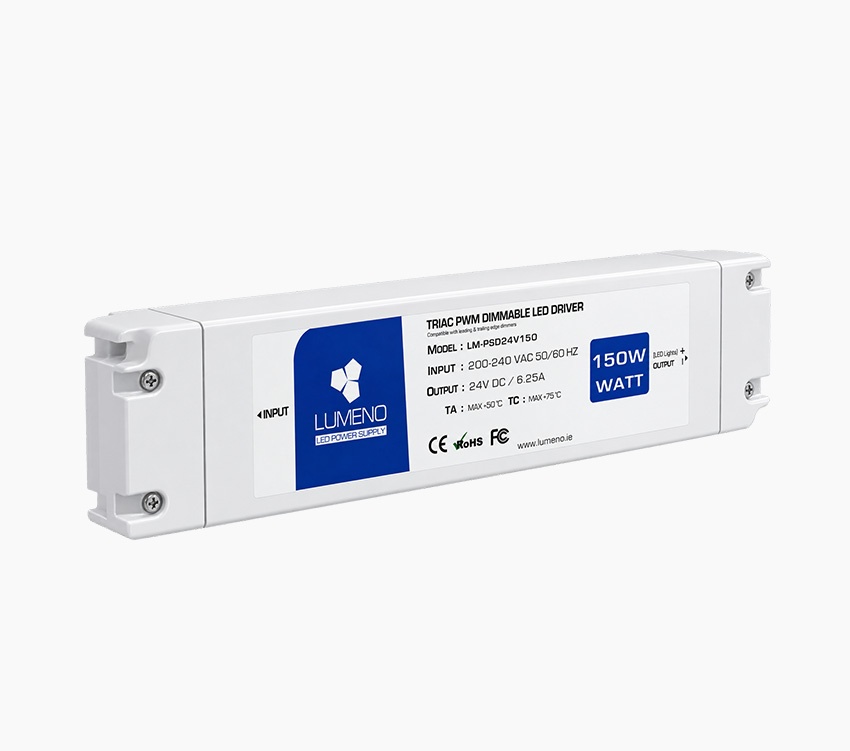

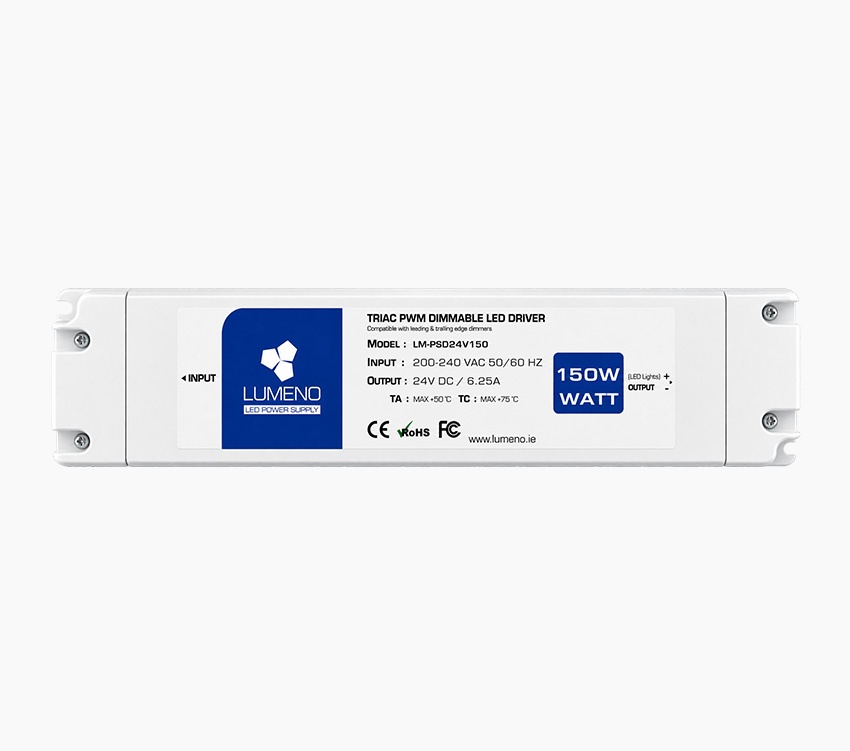

24V 150W, 6.25A, Triac Dimmable Power Supply

  • Single channel constant voltage output
  • Dimmable power supply for LED Strip
  • Plastic body
  • Leading & Trailing Edge dimming

Dimmable power supply with constant voltage output. Plastic case intput/output teminal blocks. Dimmable with standard triac dimmers.

Technical Specifications

General
Model
LM-PSD24V150
Product type
Power Supply (CV), Triac Dimmable
Application
Indoor Only
Compliance summary
CE ROHS Certified
Warranty
1 Year
Electrical
Input Voltage (Pri)
110V - 240V AC
Nominal Power
150 Watt
Rated output power (W)
150 Watt
Rated output current (A / mA)
6.25A
Dimming / control type
Leading & Trailing Edge dimming
Power factor
0.95
Controller type
Dimmer
Standby power (W)
0.5W
Lighting
Output specification
24V DC
Mechanical
IP rating
IP20
Operating temperature (degrees C)
-20°C ~ 40°C
