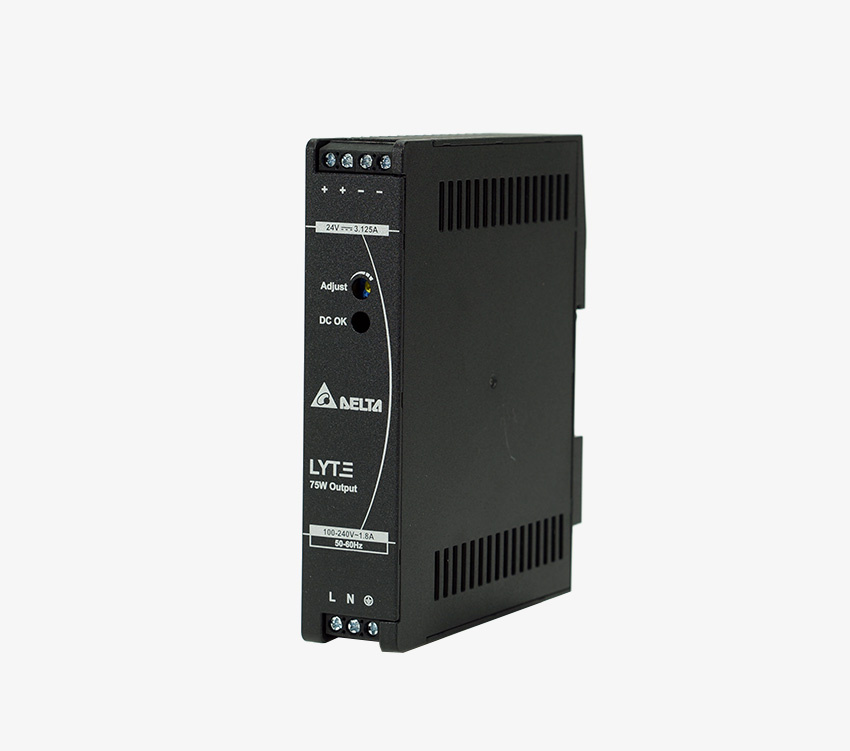

24V 75W, 3.125A, Din-rail, Power Supply, LYTE, 24V75W1AZ
DATASHEET - Din-rail power supply
www.lumeno.ie
LM-PS24V75DRL
24V 75W, 3.125A, Din-rail, Power Supply, LYTE, 24V75W1AZ
Single channel constant voltage output
Din-Rail power supply
Metal body
Universal AC input voltage
Built-in constant current circuit for reactive loads
Din Rail, heavy duty use power supply. For commercial and industrial applications.
Technical Specifications
General
Model
LM-PS24V75DRL
Product type
Power Supply (CV)
Compliance summary
CE ROHS Certified
Warranty
5 Year
Electrical
Input current (AC / DC)
0.9A typ. @ 230Vac
Input Voltage (Pri)
85V - 277V AC
Rated output power (W)
75 Watt
Rated output current (A / mA)
3.125A
Dimming / control type
non-dimmable
Power factor
0.87
Inrush current
50A typ. @ 230Vac
Lighting
Output specification
24V DC
Mechanical
IP rating
IP20
Dimensions (mm)
123.6 x 27 x 102 mm
Weight
220g
Operating temperature (degrees C)
-20°C to +70°C (-30°C Cold Start)
