12V 80W, 6.66A, Triac Dimmable Power Supply
DATASHEET - Triac dimmable power supply
www.lumeno.ie
LM-PSD12V80

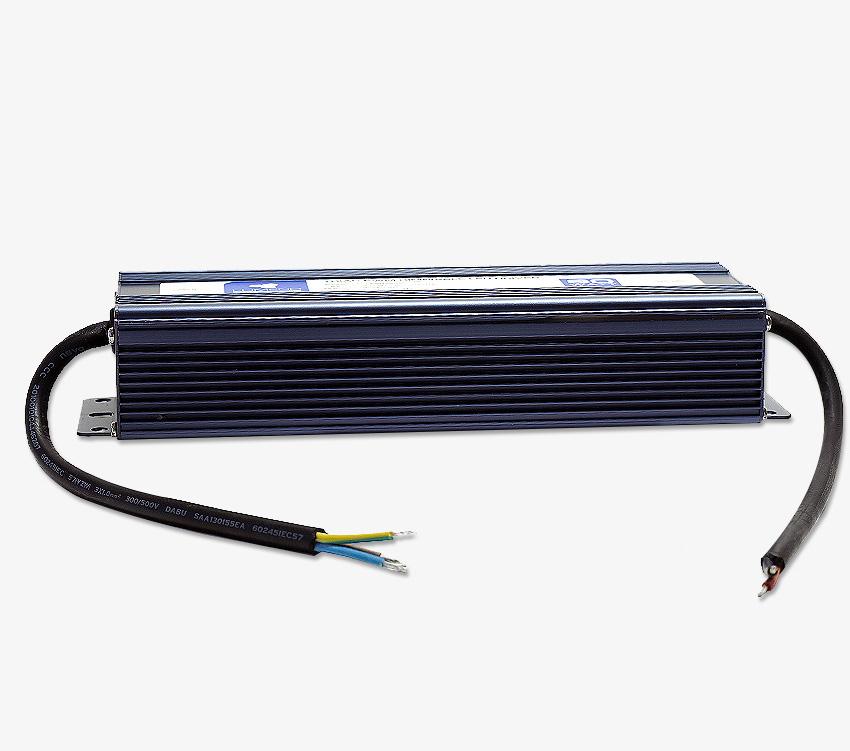

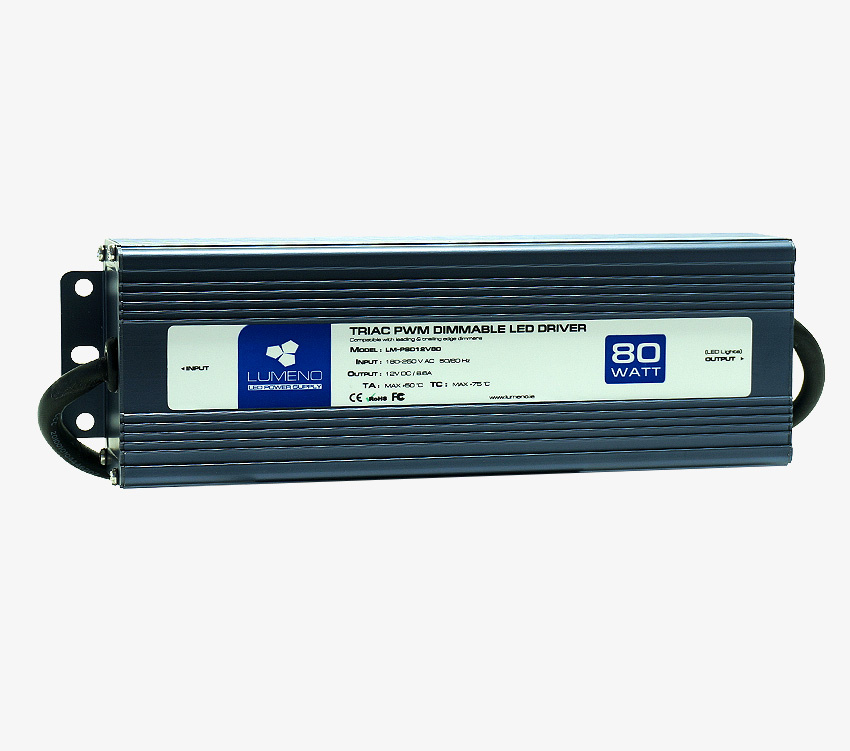

12V 80W, 6.66A, Triac Dimmable Power Supply
Single channel constant voltage output
Dimmable power supply for LED Strip
Metal body
Triac/phasecut dimming
Dimmable power supply with constant voltage output.Metal case intput/output supply cables. Dimmable with standard triac dimmers.
Technical Specifications
General
Model
LM-PSD12V80
Product type
Power Supply (CV), Triac Dimmable
Compliance summary
CE ROHS Certified
Warranty
1 Year
Electrical
Input Voltage (Pri)
110V - 240V AC
Rated output power (W)
80 Watt
Rated output current (A / mA)
6.66A
Dimming / control type
Triac dimmable
Power factor
0.95
Inrush current
50A typ. @ 230Vac
Standby power (W)
<0.5W
Lighting
Output specification
12V DC
Mechanical
IP rating
IP20
Operating temperature (degrees C)
-20°C~+70°C
Downloads & Resources
Technical documents and support files for LM-PSD12V80
Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf]
FILE · Downloadable PDF file
Download
CE [pdf]
FILE · Downloadable PDF file
Download
