12V 25W, 2.08A, Triac Dimmable Power Supply
DATASHEET - Triac dimmable power supply
www.lumeno.ie
LM-PSD12V25

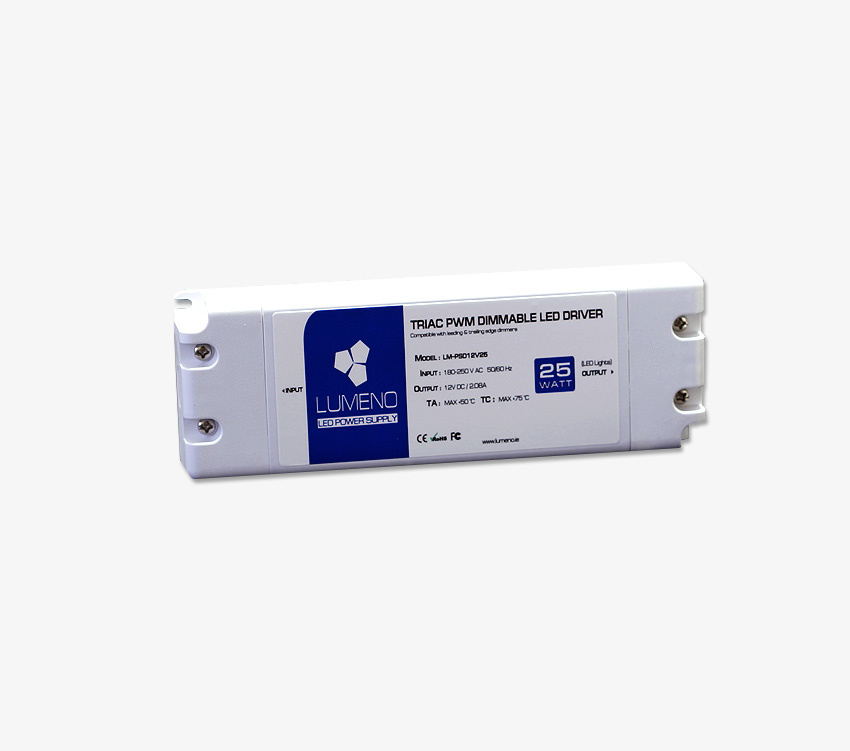

12V 25W, 2.08A, Triac Dimmable Power Supply
Single channel constant voltage output
Dimmable power supply for LED Strip
Plastic body
Triac/phasecut dimming
Dimmable power supply with constant voltage output. Plastic case, 5mm terminal blocks. Dimmable with standard triac dimmers.
Technical Specification
Model
LM-PSD12V25
Standby Power
<0.5W
Input Voltage (Pri)
110V - 240V AC
Inrush Current
50A typ. @ 230Vac
Output
12V DC
Output Power (P)
25 Watt
Current Output (Io)
2.08A
Power Factor
0.95
Ingress Protection
IP20
Dimming
Triac dimmable
Working Temperature
-20°C ~ 40°C
Protection
auto recovery: overload:105%;overtem;short-circuit
Certification
CE ROHS Certified
Warranty Period
1 Year
