DATASHEET - Din-rail power supply

www.lumeno.ie
ps12v240drl-1
ps12v240drl-112V 240W, 20A, Din-rail Power Supply, 12V240W1EN12V 240W, 20A, Din-rail Power Supply, 12V240W1EN
LM-PS12V240DRL

12V 240W, 20A, Din-rail Power Supply, 12V240W1EN

  • Two channel constant voltage output
  • Din-Rail power supply
  • Metal body
Din Rail, heavy duty use power supply. For commercial and industrial applications.

Technical Specifications

General
Model
LM-PS12V240DRL
Product type
Power Supply (CV)
Compliance summary
CE ROHS Certified
Warranty
5 Year
Electrical
Input Voltage (Pri)
85V - 277V AC
Rated output power (W)
240 Watt
Rated output current (A / mA)
20A
Dimming / control type
non-dimmable
Power factor
0.87
Inrush current
50A typ. @ 230Vac
Standby power (W)
<0.5W
Lighting
Output specification
12V DC
Mechanical
IP rating
IP20
Dimensions (mm)
123.6 x 40 x 116.8 mm
Weight
800g
Operating temperature (degrees C)
-20°C to +70°C (-30°C Cold Start)

ONLYBY

Related Products & Addons

ps12v75drl-1
5113075D1

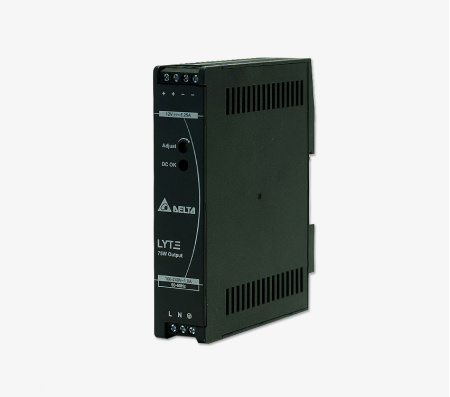

12V 75W, 6.25A, Din-rail Power Supply, LYTE, 12V75W1AZ
