LM-PS12V60SL

12V 60W, 5A, Power supply, n/d, metal, terminals

  • Single channel constant voltage output
  • High operating temperature up to 70°C
  • Metal body
  • High efficiency
  • 100% full load bur-in test
  • Protection: OTP,OLP,OVP,SCP
  • Using 105 long life electrolytic capacitors°C

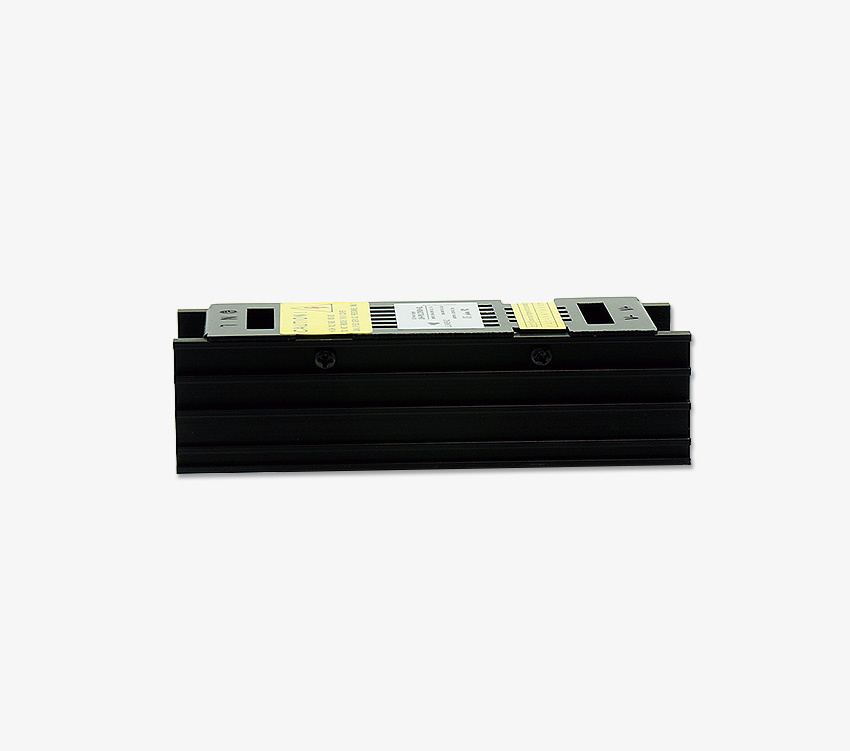

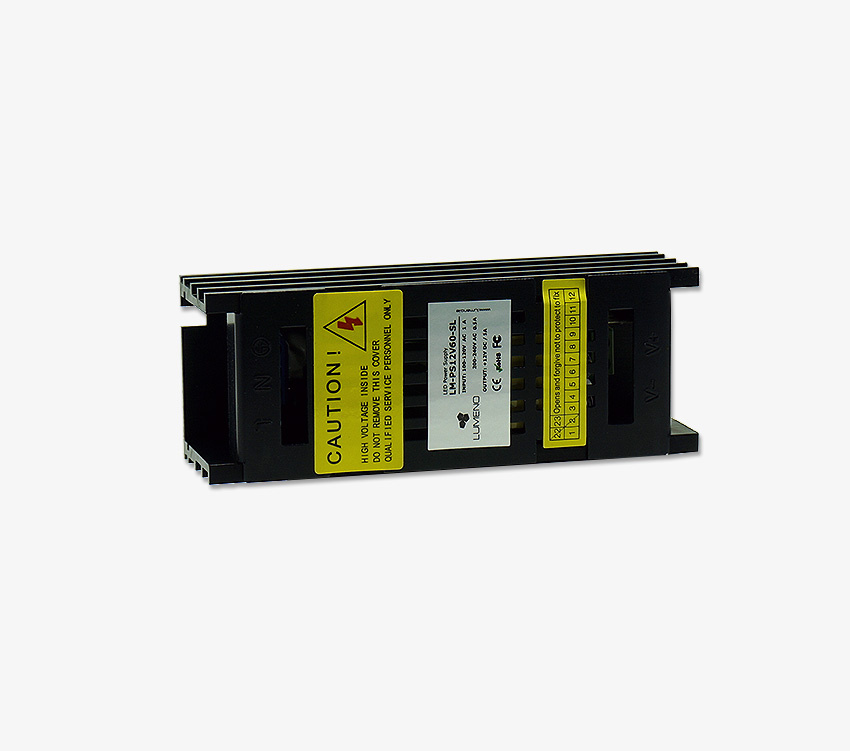

Compact, slimline metal case power supply. 5mm terminal blocks. Air cooled.

Technical Specifications

Model
LM-PS12V60SL
Product type
Power Supply (CV)
Compliance summary
CE ROHS Certified
Warranty
1 Year
Input current (AC / DC)
1.08A / 115VAC; 0.54A / 230VAC
Input Voltage (Pri)
110V - 240V AC
Rated output power (W)
60 Watt
Rated output current (A / mA)
5A
Dimming / control type
non-dimmable
Power factor
0.6
Standby power (W)
<0.5W
Output specification
12V DC
IP rating
IP20
Dimensions (mm)
85*58*37.5mm
Weight
170g
Operating temperature (degrees C)
-20°C~+60°C, 20%~90%RH
