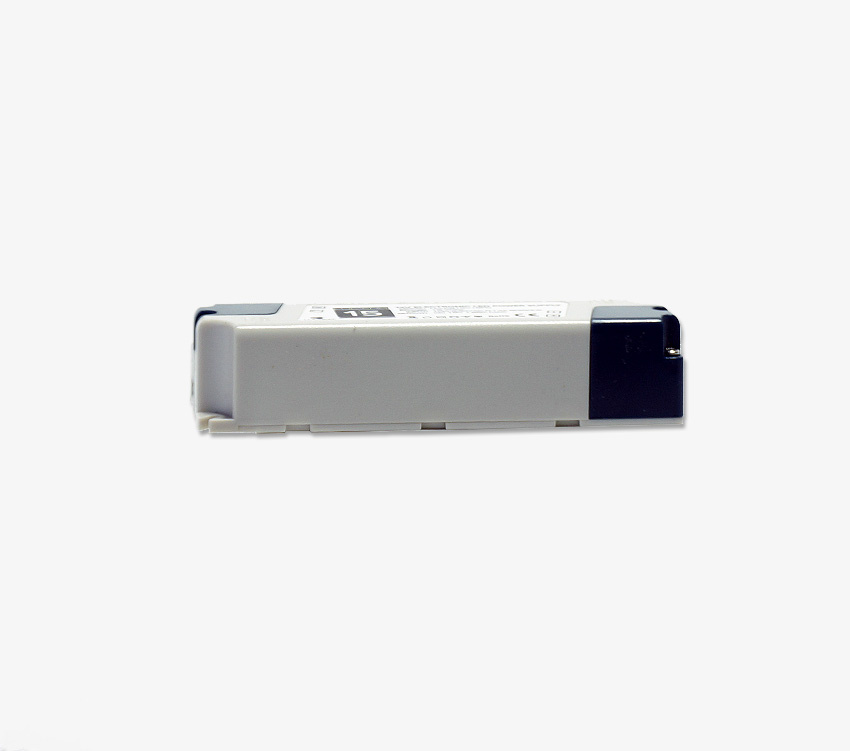

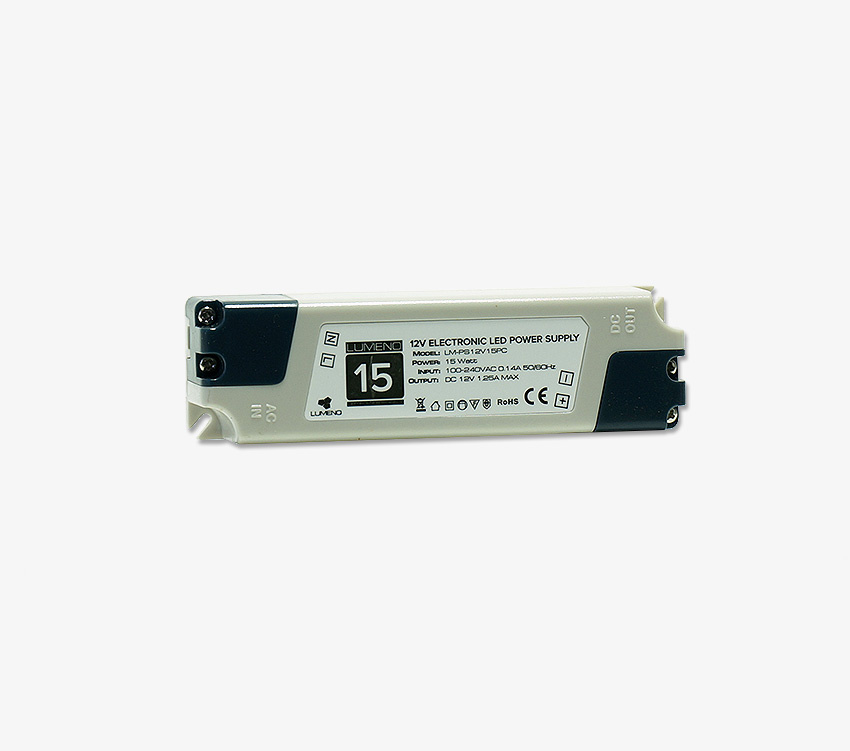

LM-PS12V15PC
12V 15W LED Power Supply,Terminal blocks
- Single channel constant voltage output
- Plastic housing and class II design without FG
- Universal AC input / Full range
- 100% full load burn-in test
- No load power consumption<0.5W
- High efficiency, long life and high reliability
Compact, plastic case power supply with 5mm terminal blocks.
Product type
Power Supply (CV)
Compliance summary
CE ROHS Certified
Input Voltage (Pri)
110V - 240V AC
Rated output power (W)
15 Watt
Rated output current (A / mA)
1.25A
Dimming / control type
non-dimmable
Output specification
12V DC
Dimensions (mm)
99.6*29.1*22mm
Operating temperature (degrees C)
-20°C~+60°C, 20%~90%RH
